3 Axle 40 ft flatbed trailer the biggest feature of high-strength steel is its high strength. The yield strength of high-strength steel is twice that of manganese steel and three times that of ordinary steel.
The 3 axle 40 ft flatbed trailer is a semi-trailer with container structure. Mainly used in ships, ports, routes, highways, transfer stations, bridges, tunnels, multimodal transport and other logistics systems. Flatbed trailers are usually heavy-duty haulers.
The size of the loading part of the 3 axles 40 ft flatbed trailer is determined according to the size of the standard container, and there are twist-lock devices for fixing the container at the corresponding positions of the four corners of the bottom of the container.

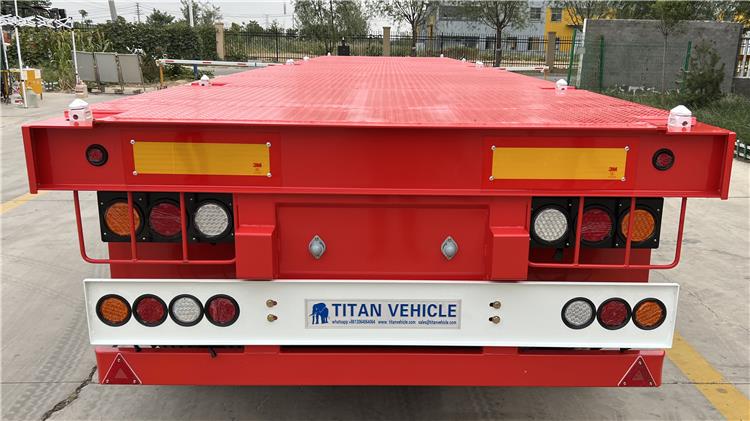

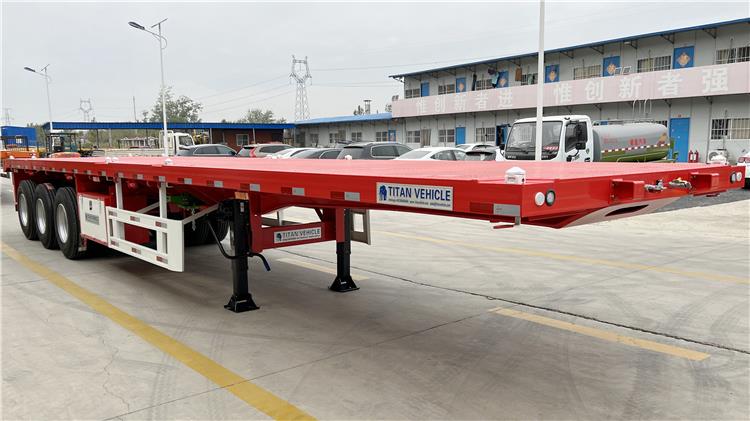

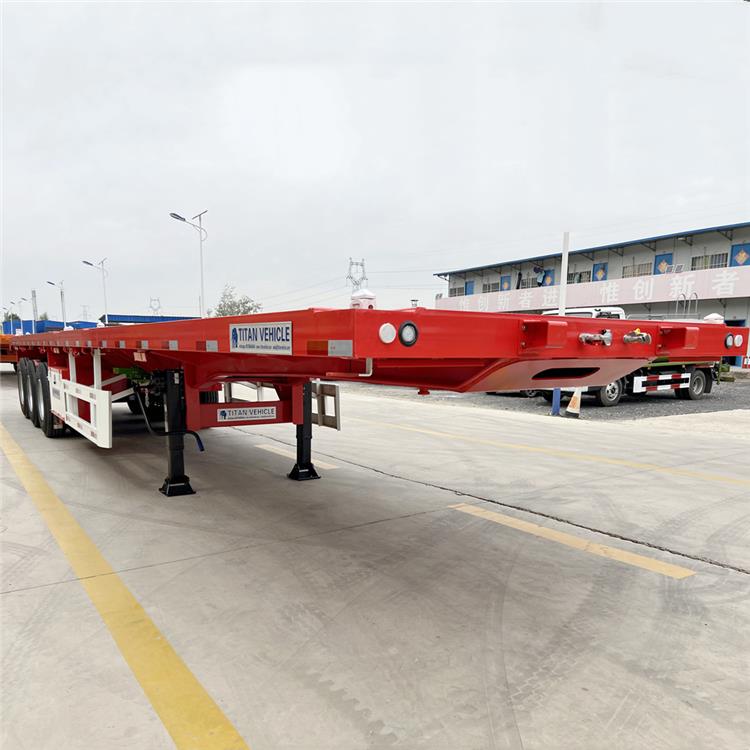

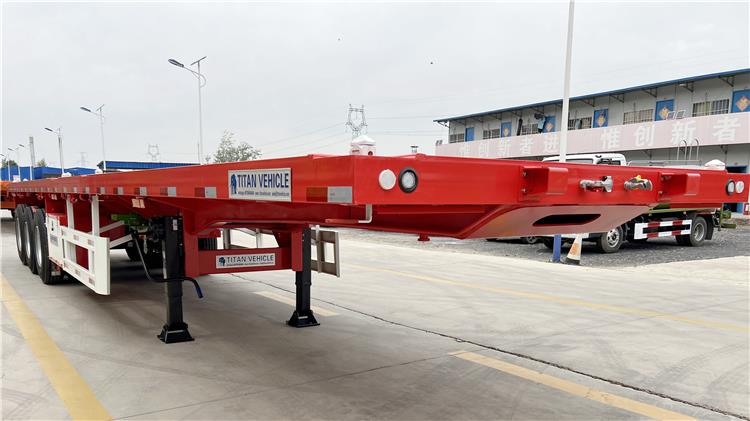

3 Axle 40 ft Flatbed Trailer for Sale Near Me in Nigeria
3 Axle 40 ft Flatbed Trailer for Sale Near Me in Nigeria
3 Axle 40 ft Flatbed Trailer for Sale Near Me in Nigeria
Model: 40 ft Flatbed Trailer
Dimension(mm): 12500x2500x1510mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)

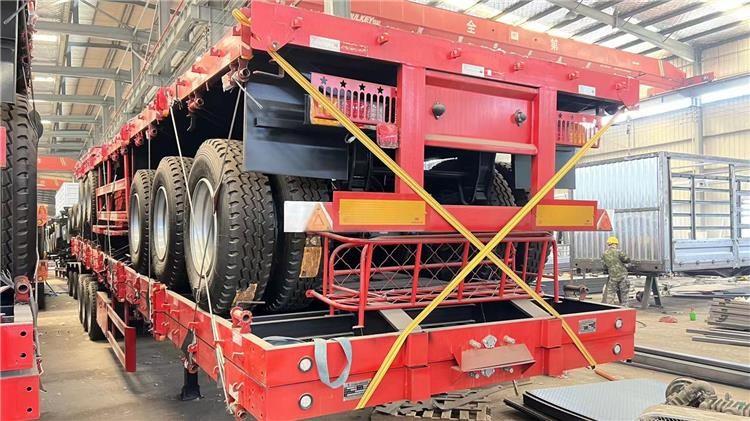

All 3 Axle 40 ft flatbed trailers will be rigorously tested before delivery to ensure quality. We have professional technicians to operate. In addition, the 3 axle 40 ft flatbed trailer will be sprayed with a layer of wax to prevent seawater erosion, and then wrapped with a rain cloth to prevent moisture.
