Hydraulic dump trailers are mostly used to carry mining ore, iron ores, bauxite, manganese ore, and alumina ore, as well as graves, chippings, cement clinker, sand and so on building materials.
Hydraulic dump trailer for sale has high safety factor, light weight, high degree of automation, simple operation, and eliminates the hidden danger of overturning. The unloading speed is fast, there is no residue, and the cab control does not require the driver to get out of the car.
Semi dump trailers are suitable for bulk cargo transportation such as sand, coal, grain, asphalt, clinker, etc. Automatic unloading without the need to lift the case really increases safety. At least it reduces the risk of tipping over during unloading.
Hydraulic Dump Trailer for Sale | Semi Dump Trailers Capacity
Hydraulic Dump Trailer for Sale | Semi Dump Trailers Capacity
Hydraulic Dump Trailer for Sale | Semi Dump Trailers Capacity

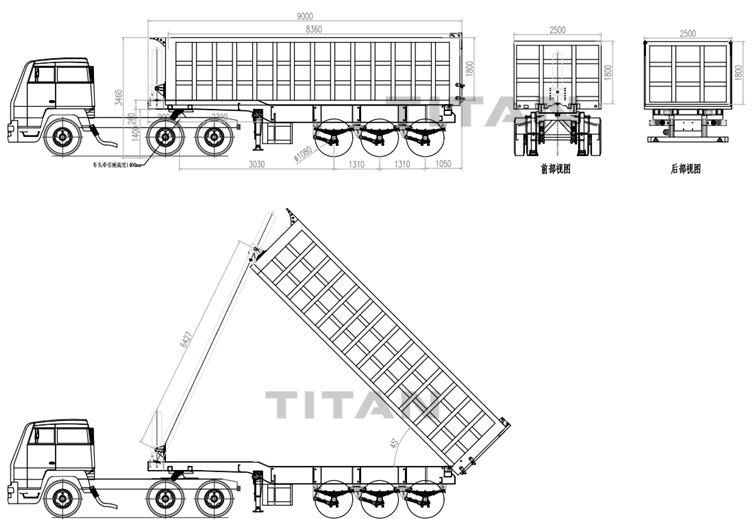

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

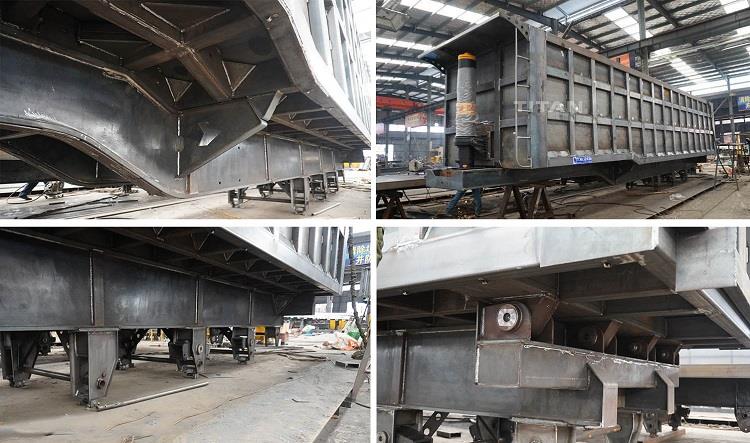

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Semi Dump Trailers Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW
Semi Dump Trailers Rim: 8.0-20 or 9.00-20
Semi Dump Trailers Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Adopt famous brand accessories to ensure our trailers are of good quality, competitive price and strong quality, professional detail research and design with years of experience
