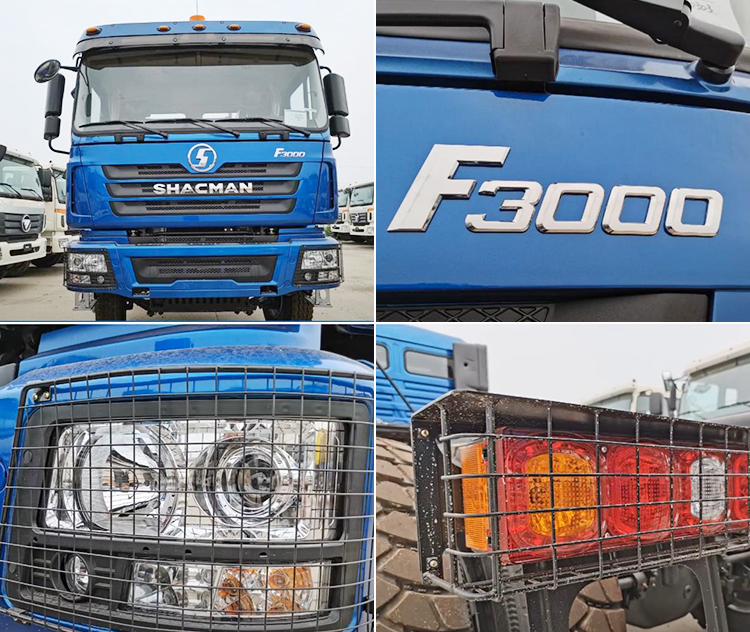

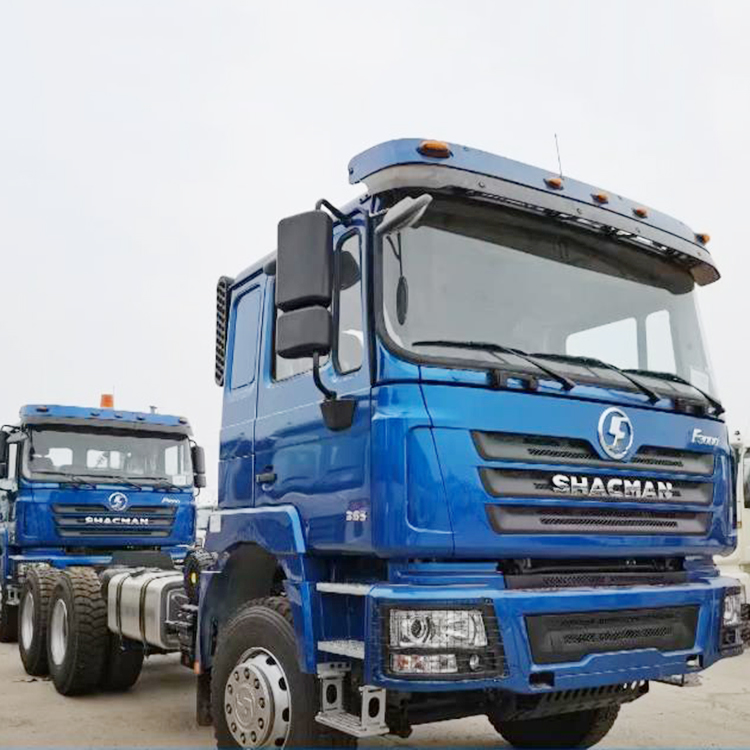

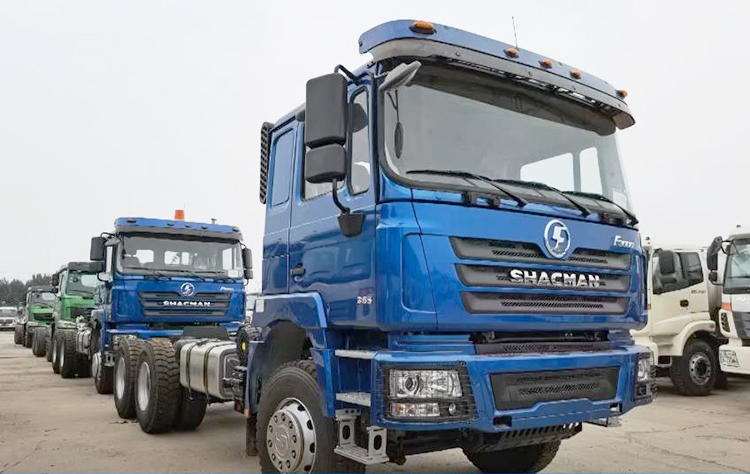

Shacman 6X4 Tractor Head

Shacman 6X4 Tractor Head with Trailer:

The cab of  shacman 6x4 tractor head with trailer adopts the mature structure of the new European design (TGS), which is safe, beautiful and simple. Lighter weight, higher strength, better corrosion resistance, standard, extended, high-roof and other cabs are available.

The shacman 6x4 tractor head with trailer chassis is built with MAN advanced technology and according to MAN standards. It greatly reduces fuel consumption and improves operating efficiency, which not only ensures strong power, but also ensures better fuel economy.

Man 3000 | Shacman 6X4 Tractor Head with Trailer for Sale

Man 3000 | Shacman 6X4 Tractor Head with Trailer for Sale

Man 3000 | Shacman 6X4 Tractor Head with Trailer for Sale

Man 3000 6X4 Tractor Head with Trailer Specification：

Brand: Shacman F3000 Tractor Head

Drive model: Left or right driven hand, 6X4

Max Speed (km/h): 90

Cab: F3000 cab, double sleeper air main seat, four-point air suspension cab, electric automatic thermostatic air conditioning

gearbox

Shift mode: manual transmission

Tire

Number of tires: 10

Tire specification: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20

Dimensions

Total mass(kg): 25000

LWH(mm) : 6825×2490× 4000

Front wheel track (mm): 2036

Rear wheel track (mm): 1800

Wheelbase (mm):3175+1400

Overhang(front/rear) (mm): 1525/725

Approach angle(°): 20

Departure angle(°): 66

Engine:

Engine model: WP12.336E40

Maximum power speed: 1900rpm

Maximum torque: 1800N.m

Maximum torque speed: 1000-1400rpm

Horsepower displacement: 11596mL

Fuel Type: Diesel

Chassis:

Frame section: frame width/height (850/300)

Number of leaf springs: 4/5

Clutch: Φ430 diaphragm

Front axle description: 7.5T MAN+

Drum rear axle description: 13T MAN double stage, speed ratio 4.266

Fuel tank capacity: 400L
