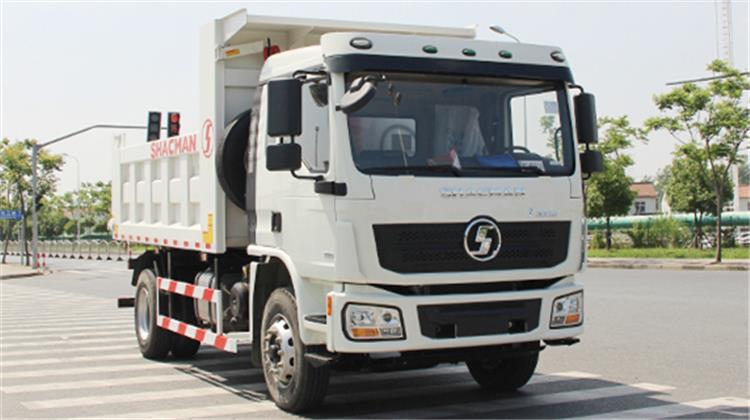

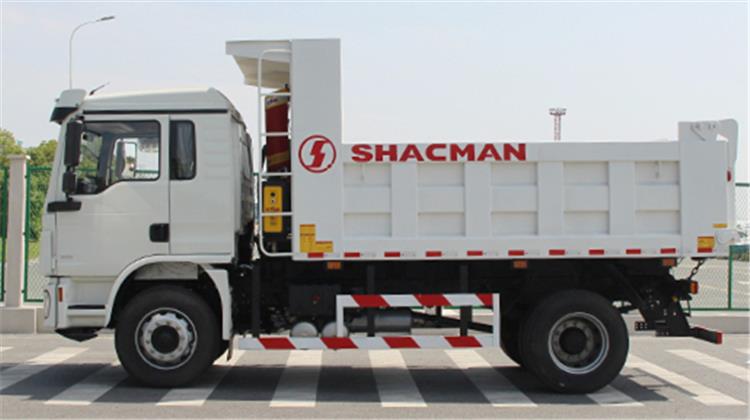

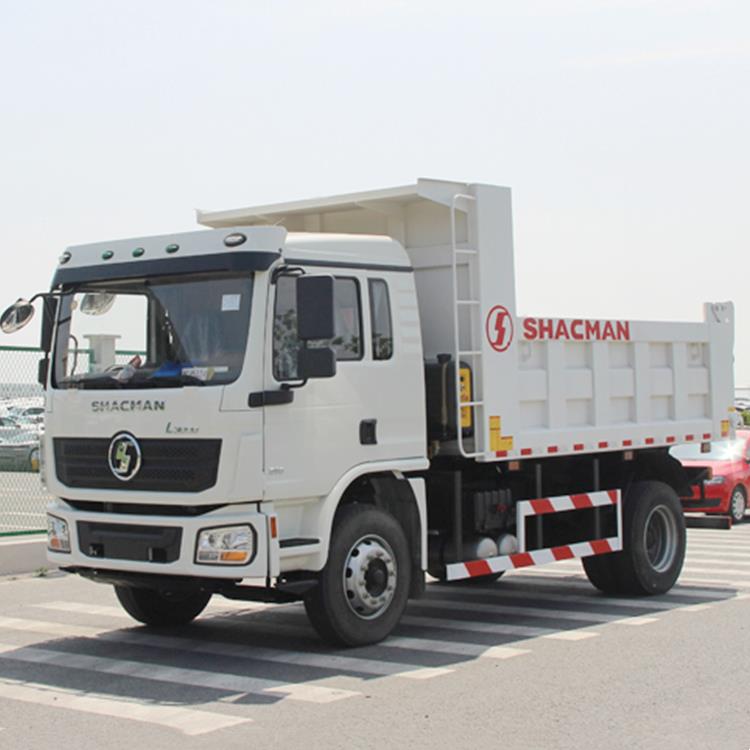

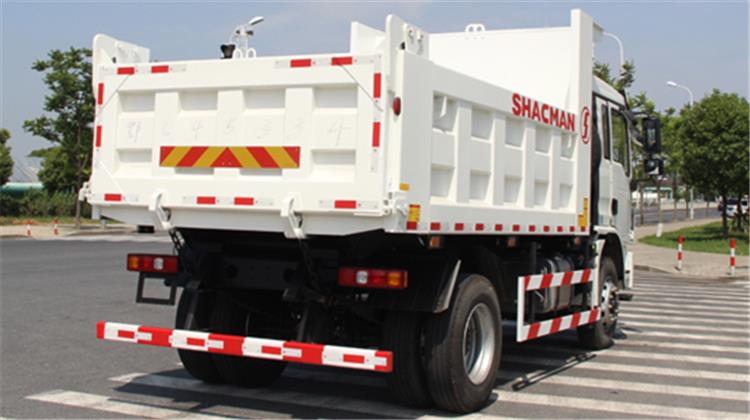

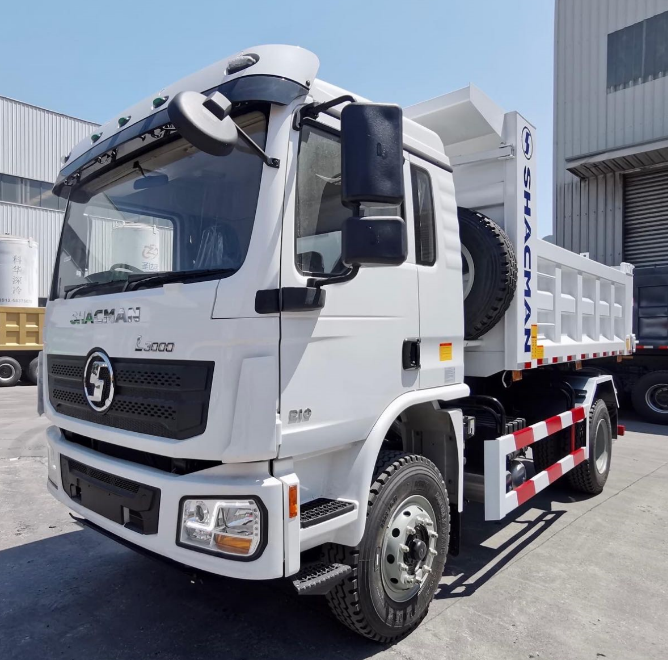

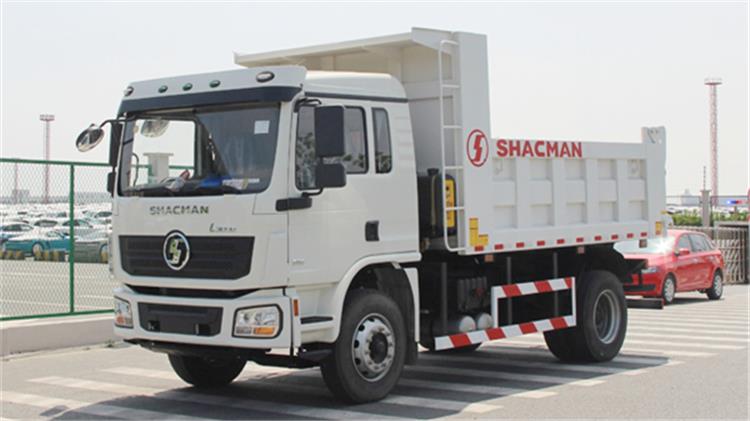

Shacman L3000 Tipper Truck

Shacman L3000 Tipper Truck Price

The combined headlights of the Price of shacman tipper truck are arranged on the one-piece bumper. The high and low beams, fog lights, turn signals and LED daytime running lights are integrated. There is also a pedal in the middle of the bumper. Handrail for easy daily scrubbing of the windshield of price of shacman tipper truck.

Shacman L3000 Tipper Truck adopts China's current higher dump truck technology. During the research and development period, a large number of leading technologies are used, and the international top research and development teams such as German MAN and American Cummins are used to achieve high reliability and reduce failure rate.

Shacman L3000 Tipper Truck for Sale | New Shacman Truck

Shacman L3000 Tipper Truck for Sale | New Shacman Truck

Shacman L3000 Tipper Truck for Sale | New Shacman Truck

Shacman L3000 Tipper Truck for Sale | New Shacman Truck

Shacman Tipper Truck Specification

Brand: New Shacman Truck

Drive model: Left or right driven hand, 4X2

Clutch: ∮430 diaphragm clutch

Gearbox Model: Fast Fuller 8JS85TM gearbox with 8 forward and 2 reverse

Propeller shaft: ∮180 contrite gear propeller shaft

Front axle: Man technology 4.8 tons

Rear axle: 11.5 tons with single reduction ratio 5.286

Rear suspension: inverted leaf spring

Instrument panel: Combined instrument panel

Tyre: 10.00R20/10R22.5,7ps

Cabin: L3000 flat head with third seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab

Other: enlargement radiator, ABS

Shacman L3000 Engine:

Engine model: Weichai WP6.180E32

Power(Kw/Hp): 180

Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard

Displacement(L): 6.23

Steering

Model: integral circuiting ball power steering

Ratio:22.2-26.2:1

Brakes

Running brake: Dual circuiting compressed air brake

Parking brake: Rear wheel power spring brake

Auxiliary brake: Engine exhaust brake

Electrics

Starter: 5.58kw,24V

Alternator: 1.54kw(28V,55A)

Battery: 135AH

Dimension (mm)

Wheel base:4000

Front-wheel track:1525

Rear wheel track:2036

Front overhang: 1850

Rear overhang: 1450

Approach angle: 28°

Departure angle: 30°

Overall length: 6950

Overall width:2490

Overall height: 3450

Body dimension:4200X2300X1300/1400/1500(bottom 8mm and side 4mm)

Fuel tank(L): 300L

Weight(Kg)

GVW:18000

Performance:

Max. running speed(km/h):100

Max. climbing capacity(%):20

Min. ground clearance(mm):318

Fuel consumption(L/100km):40
