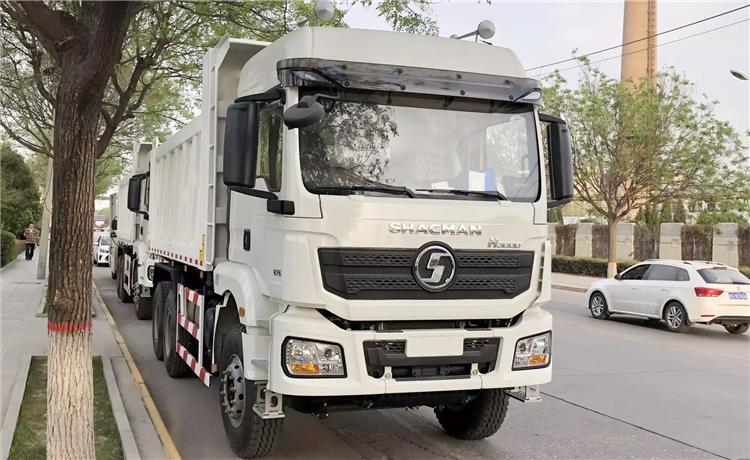

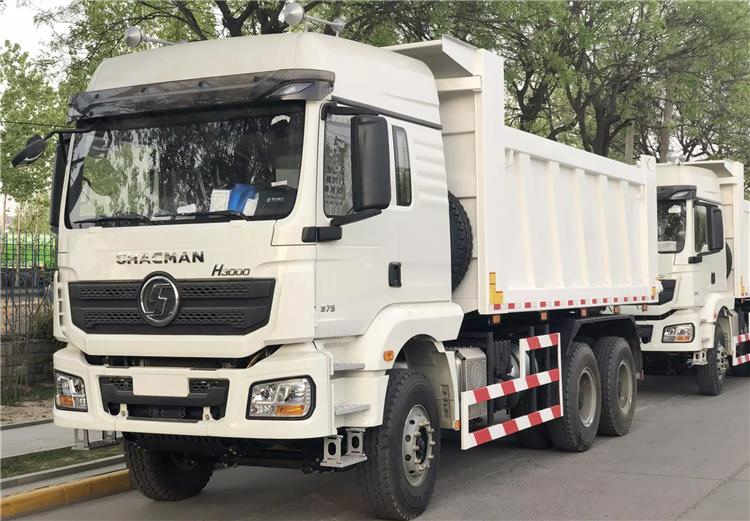

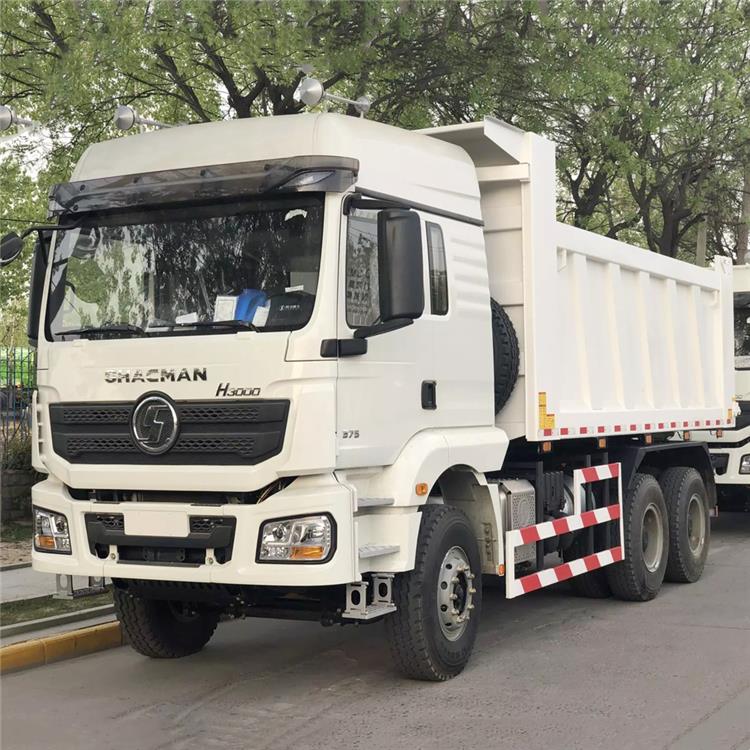

Shacman Tipper Truck 420

Shacman Tipper Truck Price: 40000USD

The chassis configuration of the Shacman Tipper Truck 420 still inherits the previous configuration. Weichai WP7/WP10 engine is matched with Fast gearbox. Hande introduced the front axle and single-stage/wheel-side reduction rear axle of German MAN technology.

The Shacman h3000 uses the design of the MAN dashboard in the interior. The center console adopts the semi-surrounding design commonly used in Japanese trucks, and various commonly used buttons are integrated on it.

Shacman Tipper Truck 420 | New Shacman H3000 Truck for Sale

Shacman Tipper Truck 420 | New Shacman H3000 Truck for Sale

Shacman H3000 Specification

Drive type: 6x4 LHD

Shacman H3000 Cab

Type: H3000 mid-lengthened flat roof with 1 sleeper

Equipment: Hydraulic main seat, four-point hydraulic suspension cab, lever-type rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedal, water tank protection grid, tail light Protection grid, 165Ah maintenance-free battery, full English logo

Shacman H3000 Dimensions

Wheel base(mm): 3775+1400

Total dimensions: 8750×2490×3450

Shacman Tipper Truck Weight

Kerb mass: 12400kg

Total mass: 25000kg

Shacman Tipper Truck Engine

Brand: WEICHAI

Model: WP10.380E22

Power(kw/HP): 279/380

Displacement(L): 9.726

Emission  Standard: Euro II

New Shacman Truck Transmission

Brand: FAST

Model: 10JSD180+QH50

Control type: Manual

Gear shift: 10-forward and 2-reserve speeds

Shacman H3000 Price Axle

Front axel: MAN 9.5T

Rear axel: 16T Man double reduction axle with ratio 5.92

Tires

Type(Standard): 12.00R20

Dump Body

Cargo Dimension (mm): 5600×2300×1500, middle lifting system, thickness of floor 8mm and side 6mm
