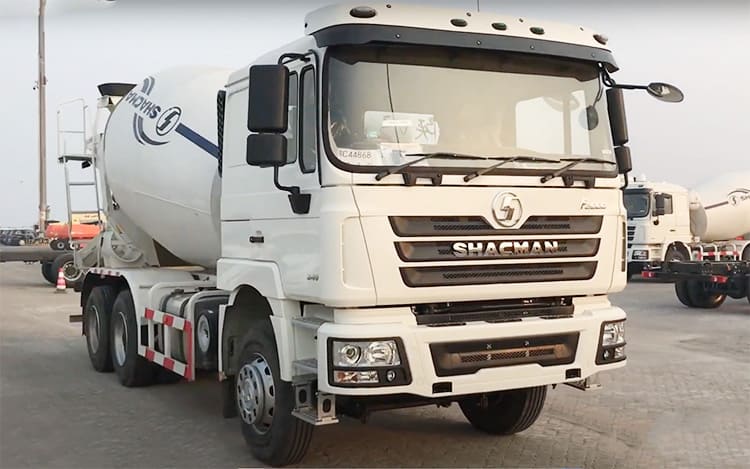

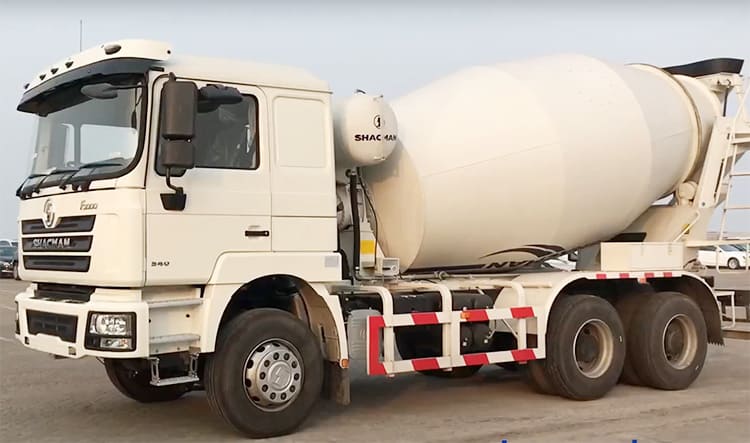

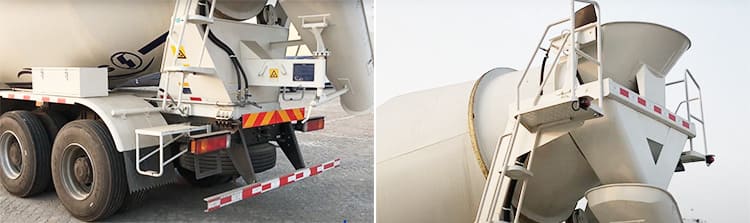

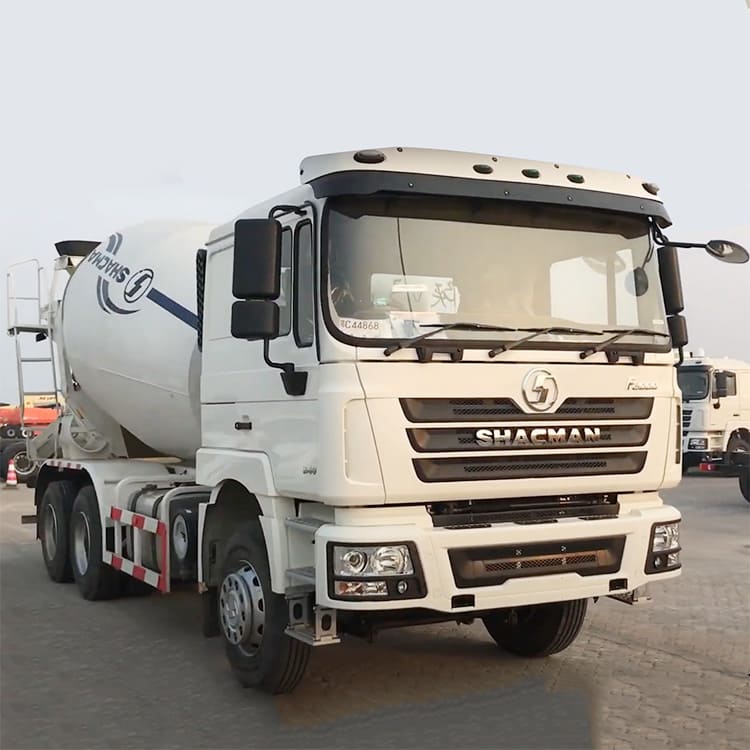

Shaanxi Shacman f3000 cement concrete truck is mainly composed of two parts: chassis and tank body. automatic welding machine is used for tank body circumferential seam and longitudinal seam.
Shaanxi Shacman f3000 cement concrete truck is mainly composed of two parts: chassis and tank body. Shaanxi Shacman f3000 cement concrete truck adopts low-alloy steel to make tank body and blades; automatic welding machine is used for tank body circumferential seam and longitudinal seam. Technology, baking paint process, the blade adopts computer-aided design method, which has the characteristics of fast feeding and discharging speed, high net rate, and small inclination angle of the mixing drum, which can effectively reduce the height of the center of gravity of the vehicle and improve the driving stability of the Shaanxi Shacman f3000 cement concrete truck.
New Shaanxi Shacman F3000 Cement Concrete Trucks for Sale Near Me in Jamaica
New Shaanxi Shacman F3000 Cement Concrete Trucks for Sale Near Me in Jamaica
New Shaanxi Shacman F3000 Cement Concrete Trucks for Sale Near Me in Jamaica
Brand: Shacman F3000 6x4 Mixer Truck
Drive: 6x4
Max weight(t): ≤35
Cab Type: MAN F3000, lengthened flat roof
Crusing speed/Max speed(km/h) : 80
Road type: Paved roads
Loaded speed(km/h) :45~60
Engine(km/h): WP10.340+PTO
Emission standard: Euro II
Displacement: 9.7L
Rated Output: 250kW
Max. torque: 1350Nm
Transmission: 9JS135
Clutch: 430
Frame: 850x300( 8+7 )
Front axle: MAN 7.5T
Rear axle: 16T MAN double reduction 5.262
Tire: 12.00R20
Front Suspension: Multi leaf springs
Rear Suspension: Multi leaf springs
Fuel: Diesel
Capacity of the fuel tank: 400L ( Aluminum shell )
Battery: 165Ah
Dimensions(LxWxH): 8475x2495x3774
Volume ( m' ): 9
Wheelbase: 3775+ 1400
Approach/ Departure angle (°): 20/18
Max.gradeability(%): 34
